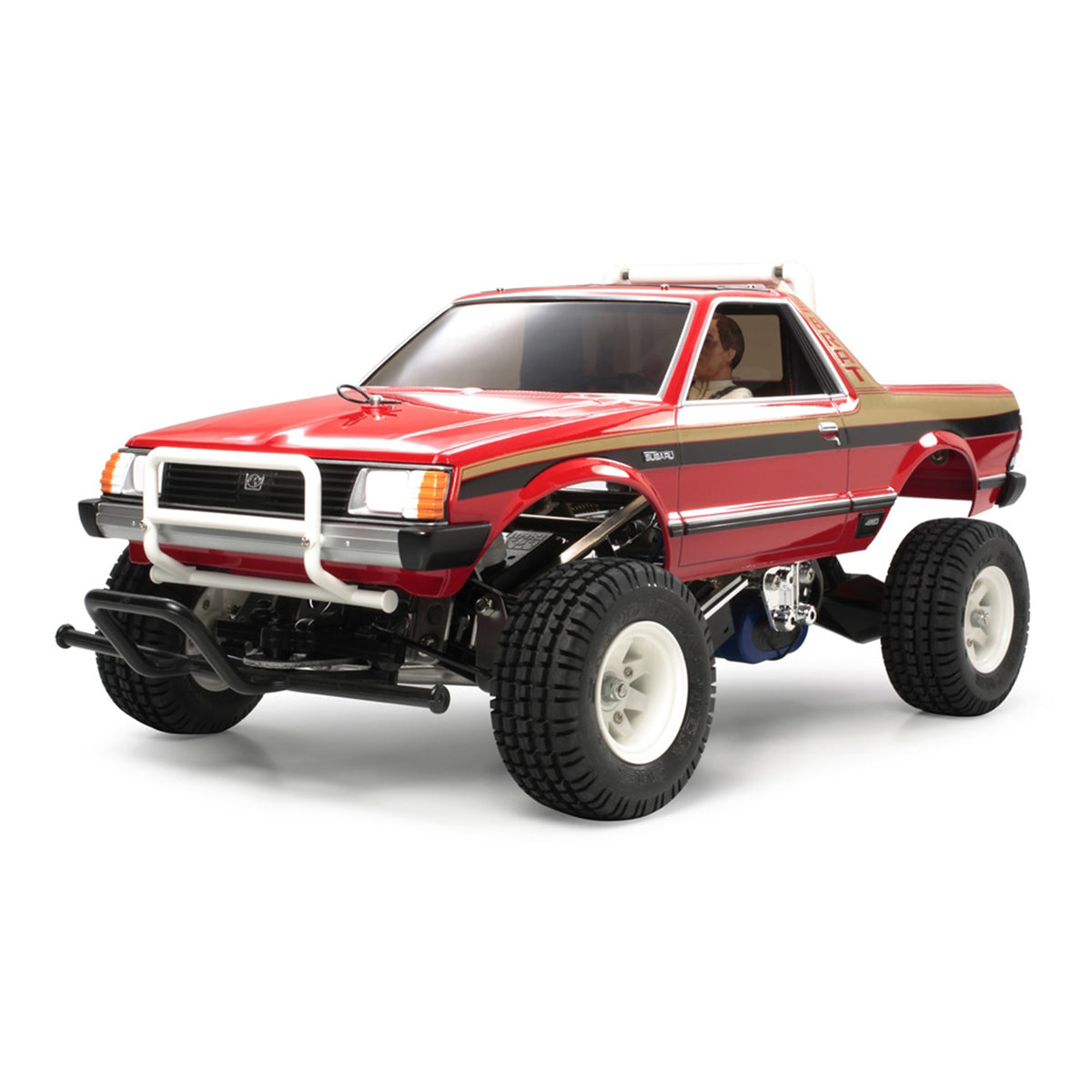

Tamiya RC Subaru Brat 1/10 Off-Road 2WD Pick-Up Truck Kit

Tamiya Subaru Brat RC Car Kit – Classic Vintage Pickup with Resin and Polycarbonate Bodies

Bring a legendary vintage pickup to your RC collection with the Tamiya Subaru Brat R/C assembly kit. Based on Tamiya's original 1983 model, this updated release combines nostalgic styling with improved internal components and versatile body options for display or driving.

The kit includes a detailed resin body for collectors and a lightweight polycarbonate body for running. A driver figure adds to the classic scale appearance. Underneath, the space-frame chassis features front double-wishbone suspension and rear trailing arms with oil dampers and coil springs.

Power comes from an RS540-type motor connected to a differential-equipped gearbox and rear-wheel-drive transmission. Dog-bone driveshaft joints, realistic eight-spoke wheels, and block-pattern tires round out this distinctive classic RC pickup.

Key Features

• Classic Tamiya Subaru Brat design inspired by the 1983 original

• Updated internal components

• Detailed resin display body and durable polycarbonate driving body

• Included driver figure for added scale realism

• Space-frame chassis with independent front suspension

• Rear trailing-arm suspension with oil dampers and coil springs

• RS540-type motor and differential-equipped gearbox

• Rear-wheel-drive layout

• Three listed gear ratios: 6.7:1, 7.3:1, and 8.5:1

Technical Specifications

• Length: 453 mm

• Width: 220 mm

• Height: 175 mm

• Weight: 1,840 g with resin body

• Front tread: 197 mm

• Rear tread: 178 mm

• Drivetrain: RWD

• Motor: RS540 type

• Chassis: Space frame

What to Know Before Buying
This is an assembly kit, not a ready-to-run vehicle. Check the kit's current contents and instructions to determine which radio equipment, electronic components, battery, charger, and assembly tools may be required.

• Required To Complete: 2-channel radio, steering servo, 7.2V battery and battery charger, and Tamiya TS paint.
