Reefs R/C

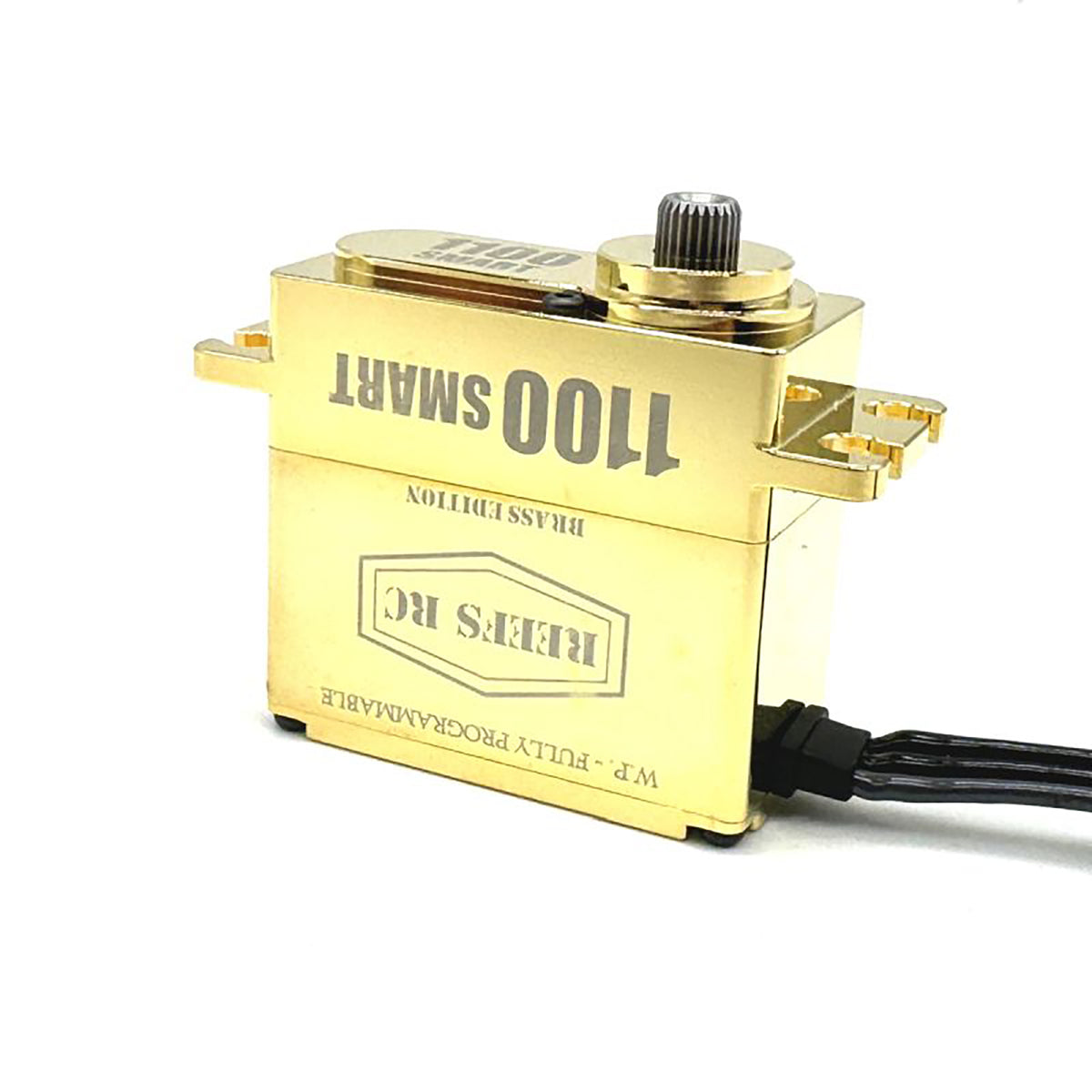

Reef's RC 1100 Smart Brass Edition - Servo/Winch

Name: Reef's RC 1100 Smart Brass Edition - Servo/Winch
Brand: Reefs R/C
SKU: SEHREEFS179
Price: 229.99 USD
Availability: InStock

SKU:SEHREEFS179

$229.99 USD

Sale Sold out

Shipping calculated at checkout.

1100 Smart Brass Edition - Servo/Winch

High Torque High Speed Brushless SERVO or WINCH

Comes as SERVO out of the Box, can be changed to WINCH with the REEFS LINK (Sold separately) and Software.

BUILT IN PREPROGRAMMED WINCH CONTROLLER

SUBMARINE WATERPROOF: 7 Point Seals

Military Grade Construction

Magnetic Angle Sensor

Pulse Width Modulation Control

4 Pole Brushless Motor

Voltage: 4.8V - 8.4V

Internal: Steel Gears / BRASS Casing / ULTRA Finish

Weight: 5.29oz / 150g

Bearing Type: 4 Ball Bearings / Weight: 2.99oz

Dimension: 1.57 x .79 x 1.5 (LWH)

Torque: 760oz @ 6v/ 930oz @7.4v/ 1100oz @8.4v

Speed: .16sec @6v/.13sec @7.4v/.12sec @8.4v

Spline: 25T

Dead Band Width: 2ls

BEC Not Req. (Recommended for max performance)

Unload Current: 460mA @ 4.8V / 500mA @ 6.0V / 540mA @ 7.4V / 580mA @ 8.4V

Load Current: 5400mA @ 4.8V / 6000mA @ 6.0V / 6800mA @ 7.4V / 7500mA @ 8.4V
