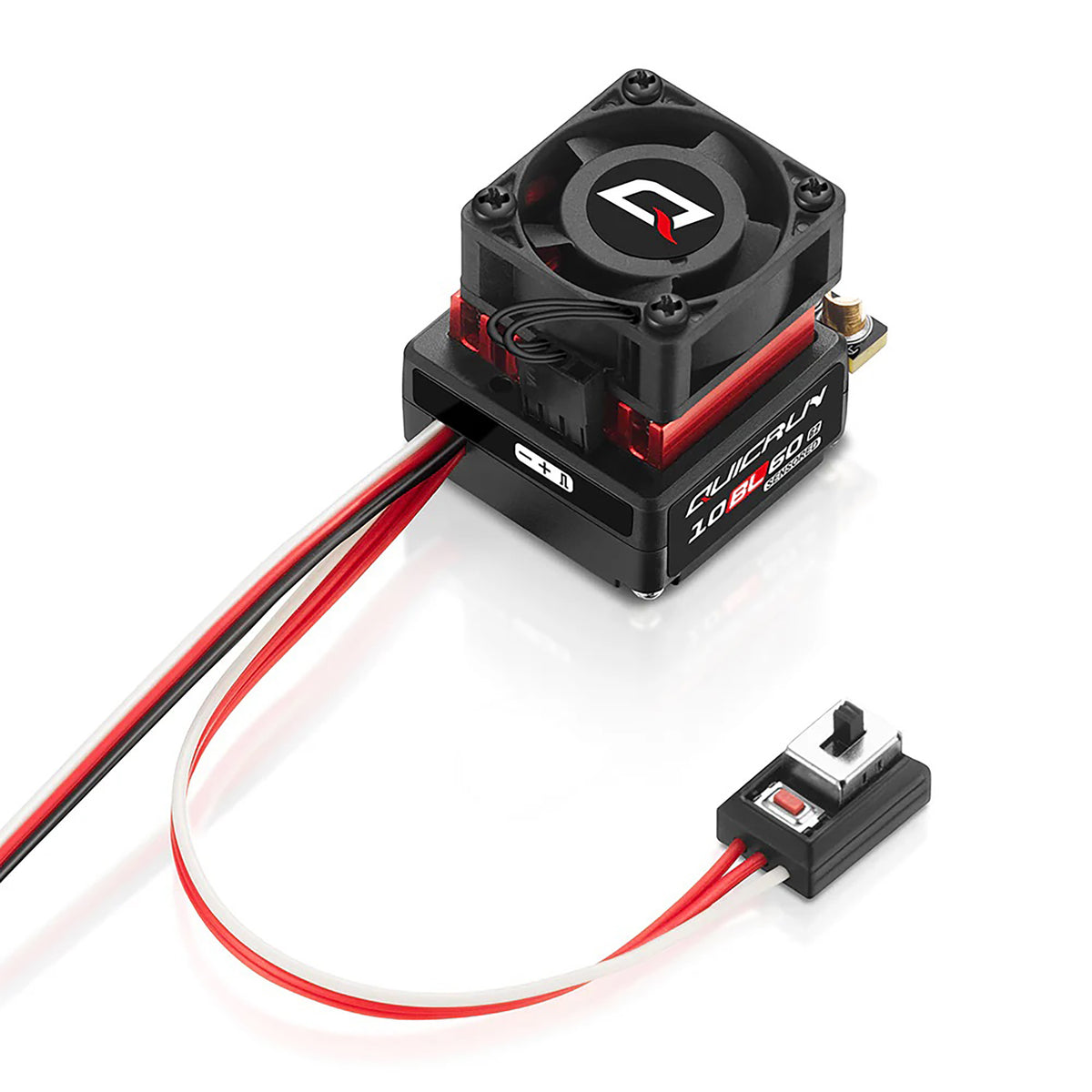

Hobbywing QuicRun 10BL60 Sensored G2 ESC (1/10, 1/12)

Quicrun 10BL60 Sensored G2 ESC

Specifications

• Cont. / Peak Current / Resistance: 60A / 380A / 0.0008 Ohm
• Motor Type Supported: Sensored / Sensorless Brushless Motor
• Motor Limit:
  • 4-6 cells NiMH/2S Lipo: 8.5T(1/10 On-road), 13.5T(1/10 Off-road)
  • 8-9 cells NiMH/3S Lipo: 13.5T(1/10 On-road), 17.5T(1/10 Off-road)
• Battery: 4-9 cells NiMH, 2-3S Lipo
• BEC Output: 6V@2A

Features:

• High performance but low price, users can own this reliable race-ready ESC at an affordable cost.
• Compact size, suitable for various car chassis.
• Auto identification system can recognize sensored / sensorless brushless motors automatically.
• Excellent operating feelings and plentiful adjustment options, suitable for most kinds of competitions.
• 8 steps of timing adjustment greatly increase the output power of the motor, and unlock its maximum potential.
• Proportional brake with 4 steps of Maximum Brake Force adjustment, 8 steps of Drag Brake Force adjustment and 4 steps of Initial Brake Force adjustment.
• 9 steps of acceleration (punch) adjustment, from "soft" to "very aggressive" to fit for different kinds of cars, tires and tracks.
• Multiple protections: Low voltage cut-off protection for Lipo or NiMH battery / Over-heat protection / Throttle signal loss protection / Motor Lock-up protection.
• One-button (the "SET" button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.

• Suggested Application: 1/10, 1/12, 1/14 Buggies, Drift, & Touring Cars
• Motor Type: Brushless - Sensored/Sensorless
• Input Voltage: 2S LiPo (7.4V)
• Continuous Current: 60A
• Peak Current: 200A
• Dimensions (LxWxH): 1.38x1.22x1.21in (35x31x30.8mm)
• Weight: 2.35oz (66.5g)
• Motor Limits: >8.5T 3650 (540-Sized)
• BEC Voltage: 6V/7.4V
• BEC Continuous Current: 4A
• BEC Peak Current: -
• Motor Connector: Solder
• Battery Connector: Solder
• Motor Wire: -
• Battery Wire: -
• Programmable: SET Button (Optional LED or LCD Program Box available separately)
