Kyosho

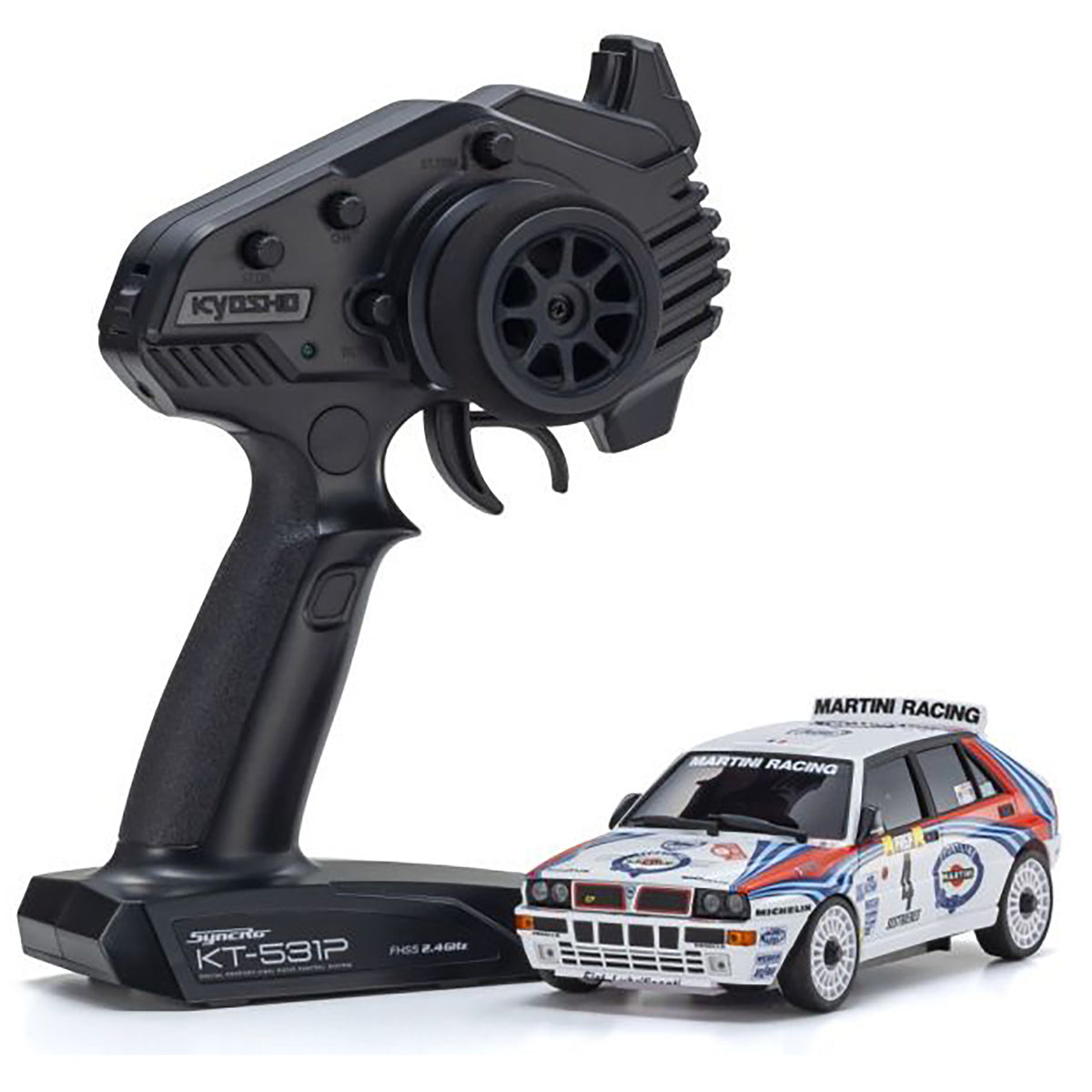

Kyosho MA-020 AWD Mini-Z ReadySet w/Lancia Delta No.4 1992 Monte Carlo Rally Winner , w/2.4GHz Radio

Kyosho MA-020 AWD Mini-Z ReadySet w/Lancia Delta No.4 1992 Monte Carlo Rally Winner , w/2.4GHz Radio

SKU:32655MC

Regular price $239.99 USD
Regular price Sale price $239.99 USD
Sale Sold out
Shipping calculated at checkout.
Quantity
To bring its dynamic performance to even more drivers, the MINI-Z AWD is now available in a Readyset. The MA-020 chassis features VCS (variable camber suspension) on the front that optimizes camber change with suspension stroke and a specially designed circuit board. Fully fitted out with precision ball bearings, the high drive efficiency of the MA-020 chassis is complimented in the Readyset by the unique scale body and 2.4GHz Syncro KT-531P R/C system that requires no frequency band setting; all at a great value price. Simply set the batteries to enjoy the thrill of drift driving with the included set of drift tires. The chassis is compatible with nearly all ASC MINI-Z bodies (additional parts maybe required for some body styles). The MINI-Z AWD promises a unique world of dramatic racing action for you to experience and enjoy.



technical-image-01

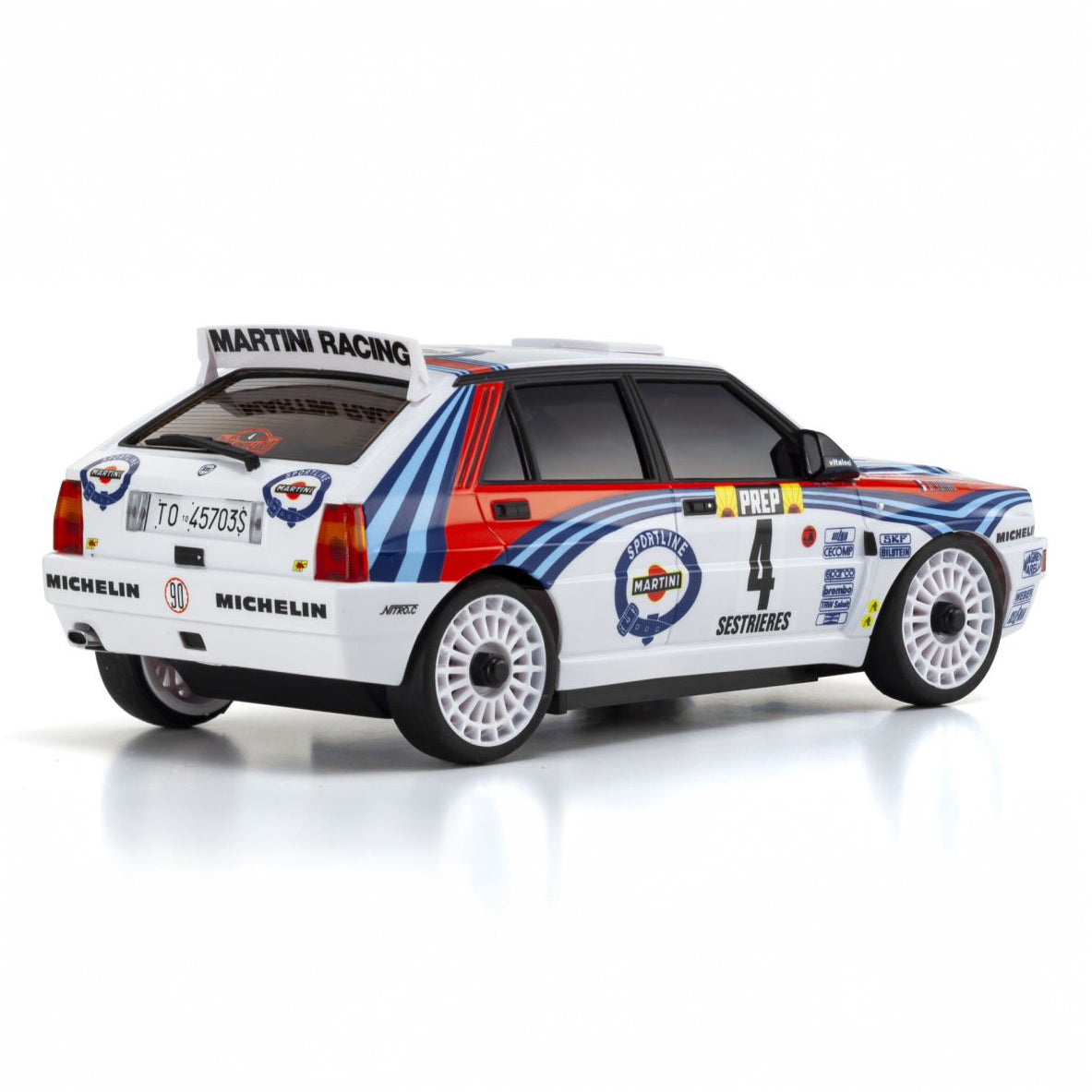

Lancia’s Group A Delta made its mark in the World Rally Championship with a dominant run through the late 1980s. Its final evolution capped off the legacy with eight wins in the 1992 season—including a triumph at the Monte Carlo Rally.
technical-image-02
Includes stylish design of Syncro KT-531P transmitter. Features steering / throttle trim as well as dual rate adjustment of steering angle and control the flashing speed of optional LEDs. In addition, the transmitter has a Training Mode feature which limits speed of the car for easy learning (default setting at the time of shipment is Training Mode).
technical-image-03
Special AWD Sports chassis is based on the MA-02 chassis and features the RA45 unit.
technical-image-04
Features VCS front suspension that optimizes camber change in concert with suspension stroke. Replacement of front suspension coil springs is easy with no tools required.
technical-image-05
Equipped with strut-type rear suspension.
technical-image-06
Full bearing specifications include 14 ball bearings.
technical-image-07
Equipped with drift tires as standard.
technical-image-08
Equipped with special mount space and gyro adjustment volume for the optional gyro unit (sold separately:No.MZW711).


■Length 145.0mm

■Width 68.0mm

■Height 53.0mm

■Wheelbase 90.0mm(M)

■Tread F : 56.5mm R : 56.5mm

■Chassis MA-020-N

■Front Wheel Offset Narrow ±0.0mm

■Rear Wheel Offset Narrow ±0.0mm

■Weight 185g

■R/C System Syncro KT-531P



Includes:

● R / C unit built-in complete chassis
● Painted and marked complete body
● Syncro KT-531P transmitter
● Mini pylon
● Pinion gear (15T, 17T, 19T, 21T)
● Spur gear (27T, 29T, 31T)
● Spare nut
● Wheel wrench
● Pinion removal tool

Requires:

●AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis.
●AAA-size alkaline batteries x 4 for transmitter
