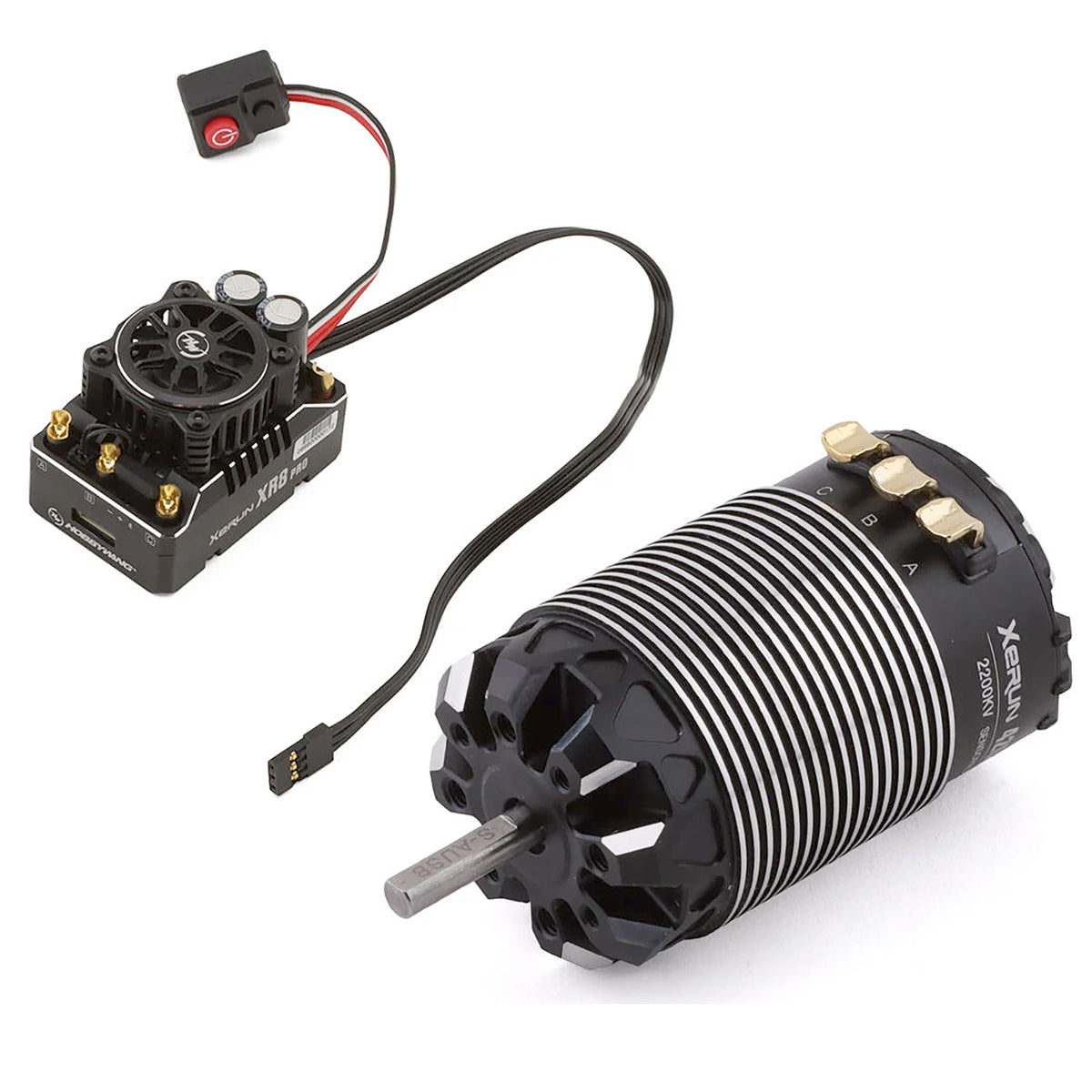

Hobbywing Xerun XR8 Pro G3 ESC + 4268SD G3 Motor 2200kv Combo, 4S

Xerun XR8 Pro G3 ESC + 4268SD G3 Motor 2200kv Combo, 4S

1/8, 1/10th 1/8 Off-road,On-road Racing
1/10 Short course truck,Monster truck

• (1) XeRun XR8 PRO G3 ESC
• (1) XeRun SD 2200kv brushless motor

• The product features three common profiles that are suitable for all 1/8 Racing applications, allowing users to select and use them instantly. These profiles include Zero timing-Blinky mode, 1/8 Off-Road Racing mode, and 1/8 On-Road Racing mode.
• XR8 PRO G3 ESC offers 32 built-in adjustable parameters, providing flexibility to meet various power requirements. These parameters can be easily imported and exported, facilitating communication and learning among drivers.
• The ESC supports firmware upgrades, which can be done using the multi-function LCD G2 programming box, OTA Programmer, or Tunalyzer (available for purchase). This allows users to enjoy the latest functions and enhancements.
• With the built-in switch mode BEC, the ESC provides a maximum output of 12A and allows adjustable voltage options of 6V or 7.4V. This flexibility is ideal for usage with servos and other devices that require different voltage levels.
• The ESC includes a built-in reverse connection protection circuit, ensuring the ESC is protected from damage in case of reverse connection.
• The ESC features a data logging function, allowing users to view various running data through the HW LINK app using the OTA Bluetooth module. This provides valuable insights and analysis for performance evaluation.

• Cont./Peak Current: 200a/1080A
• Motor Type: Sensored/Sensorless Brushless Motors
• Applications: 1/8 Off-Road, On-Road Racing & 1/10 Short course truck, Monster truck
• Motor Limit: With 3S LiPo: KV<4000 3660 Size motor / With 4S LiPo: KV< 3000 4268 Size motor
• LiPo Cells: 2-4S LiPo
• BEC Output: 6V/7.4V Adjustable, Continuous Current: 6A (Switch-mode)
• Cooling Fan: Powered by built-in BEC
• Size/Weight: 54.8(L) x 36.8(W) x 38.8(H)mm / 102.8g
• Programming Method: Multifunction LCD G2 Program Box, OTA Programmer

• Kv: 2200
• LiPo: 2-6s
• Outer diameter/Length: 42x67.8mm (1.654x2.669in)
• Output Shaft Diameter/Length: 5x18.5mm (.197x.728in)
• Bearing Size: Front 16x5x5mm; Rear 11x5x5mm
• Weight: 285g
• Application: 1/8th Off-Road
