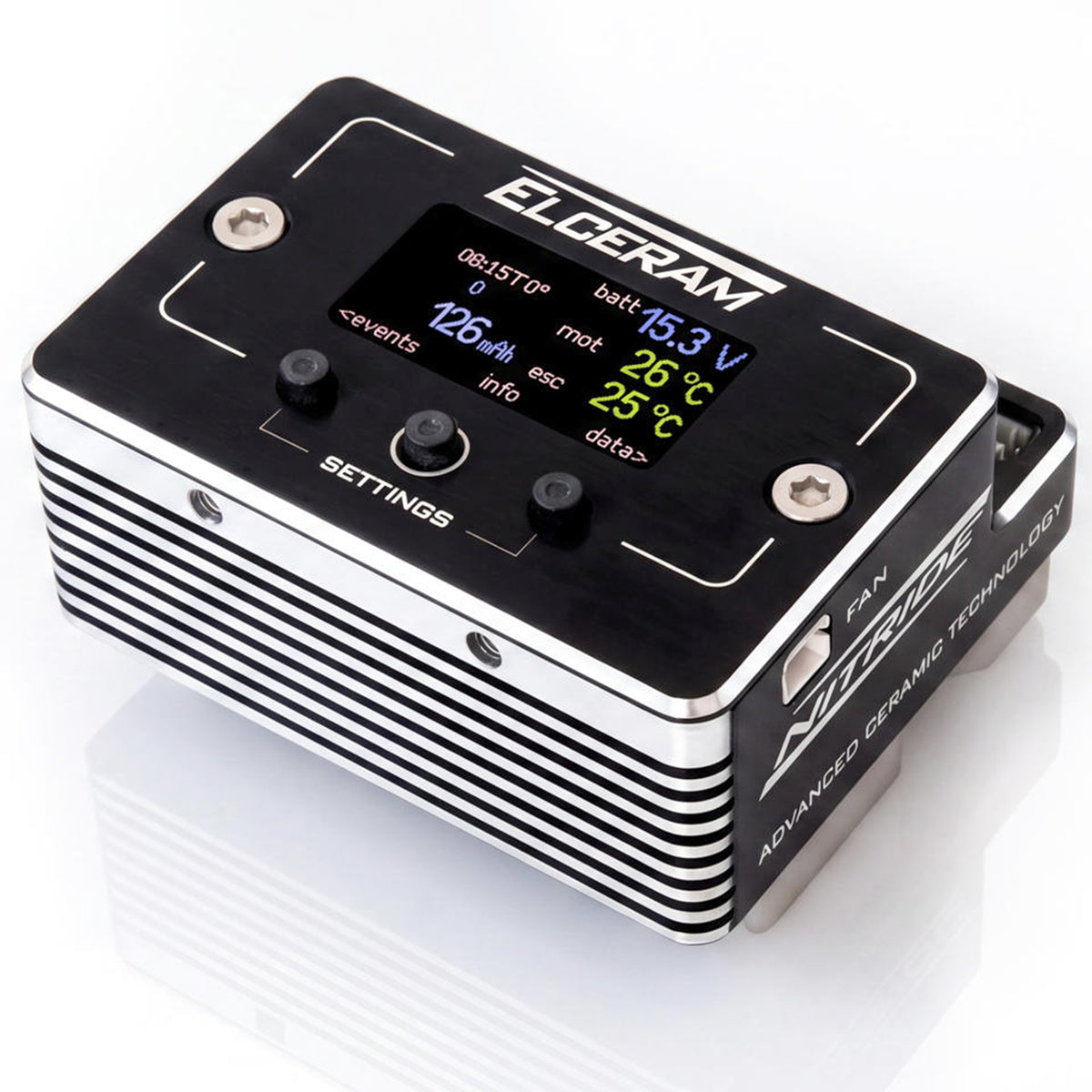

Elceram Nitride 1/8 Sensored Brushless ESC (2-4S) w/Color LCD Display

High-Performance 1/8 ESC with Advanced Features

The Elceram Nitride 1/8 Sensored Brushless ESC is a high-performance electronic speed controller designed for 1/8 scale on-road and off-road RC vehicles using sensored brushless motors. Built with advanced Aluminum Nitride ceramic cooling technology, it delivers outstanding thermal performance while supporting motors up to 2800kV. An integrated Thin-Film Transistor (TFT) color display allows programming, diagnostics, and data monitoring directly from the ESC without requiring an external programming card or mobile app. Intelligent protection features, real-time monitoring, and extensive tuning options make it an excellent choice for demanding racing applications.

About the Nitride 1/8 Brushless ESC

Integrated TFT Display & Programming

The built-in TFT color LCD display provides instant access to all programming and diagnostic functions directly from the ESC. Three onboard buttons make adjusting throttle, brake, boost, turbo timing, Hall angle, and other parameters quick and intuitive without connecting additional hardware. The display also provides clear access to race information before, during, and after every run, allowing racers to make adjustments with immediate feedback.

Advanced Cooling & Reliable Performance

At the heart of the Nitride 1/8 ESC is Elceram's Aluminum Nitride ceramic cooling system, engineered for exceptional heat transfer under demanding racing conditions. Direct MOSFET transitor cooling, thick conductive layers, and integrated aluminum cooling fins help maintain stable operating temperatures during high-power operation. Pre-drilled fan mounting holes and the included 25mm cooling fan provide additional cooling potential when running in especially demanding environments.

Intelligent Protection & Data Monitoring

The Nitride 1/8 continuously monitors battery voltage, battery current, temperatures, motor condition, and other critical operating data in real time. Built-in diagnostics help identify potential issues before a race, while intelligent protection algorithms safeguard the ESC in the event of motor failure or mechanical problems. Additional features such as reverse polarity protection, onboard race data logging, firmware update capability, adjustable maintenance reminders, and a replaceable display cover help maximize reliability and long-term usability.

Features:

• Advanced Aluminum Nitride ceramic cooling system
• Integrated TFT color LCD display
• Three-button onboard programming interface
• Supports sensored brushless motors up to 2800kV
• Real-time battery and ESC monitoring
• Built-in race data logging
• Intelligent ESC protection algorithms
• Reverse polarity protection
• Zero Timing (Blinky Mode) support
• Firmware update capability

Includes:

• (1) Nitride 1/8 Sensored Brushless ESC
• (2) External Capacitors
• (1) 10AWG Wire Set
• (1) BEC Cable (300mm, grey stripe is negative)
• (1) 25mm Cooling Fan
• Double-Sided Tape
• Product Manual

Specifications:
