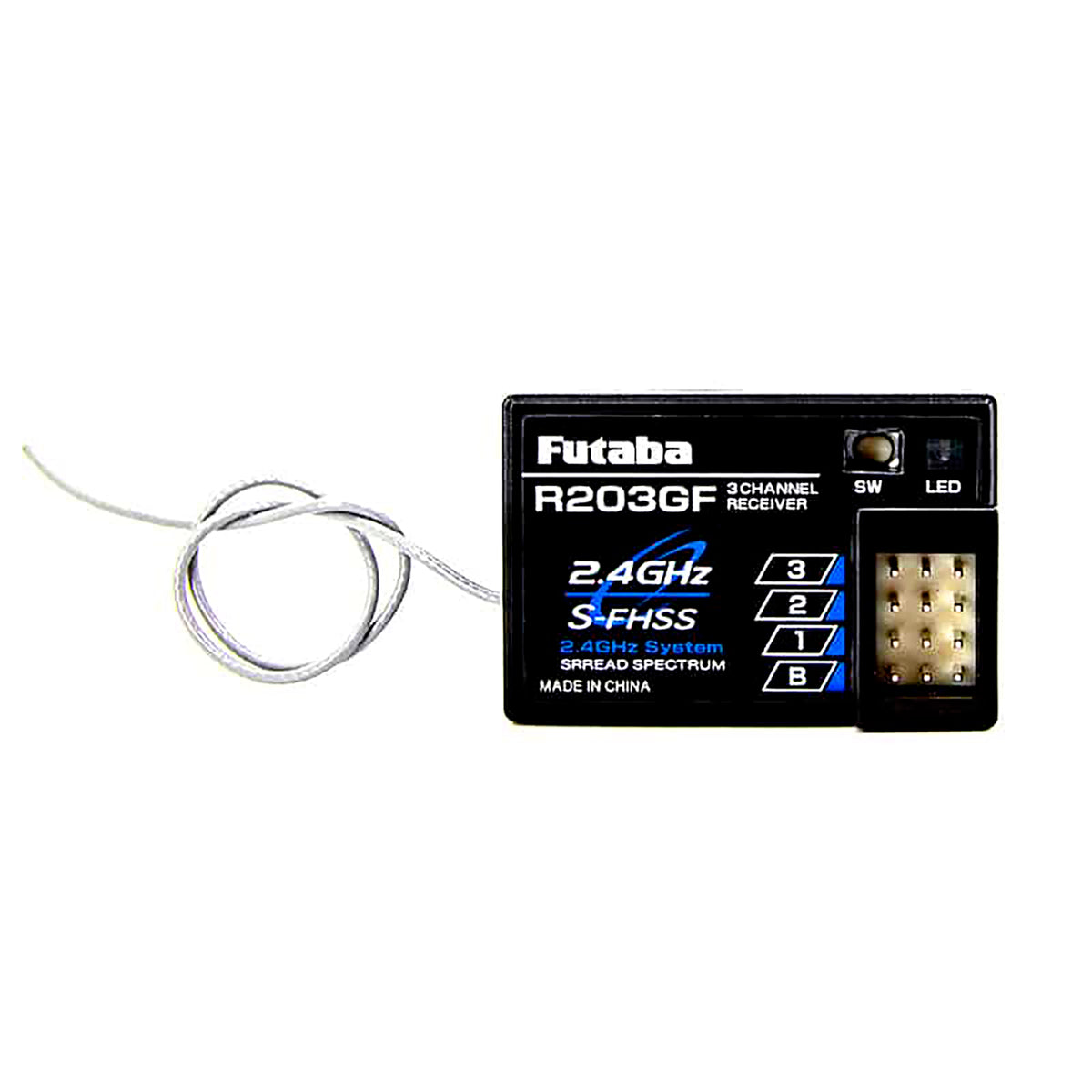

Futaba R203GF S-FHSS 3-Channel 2.4GHz Receiver

The Futaba R203GF 3-Channel 2.4GHz S-FHSS Receiver is compatible with Futaba FHSS and S-FHSS transmitters.


The R203GF receiver is not compatible with 2.4GHz FASST or FASSTest systems. It will work with FHSS and T-FHSS transmitters, but transmitter mode will need to be changed to from T-FHSS/FHSS to S-FHSS mode.

• S-FHSS/FHSS auto detection
• Compatible with Futaba S-FHSS/FHSS protocol
• Normal and high-speed mode:
• Normal mode has a frame rate output of 13.63ms and accepts any type of servos or peripherals
• High-speed mode, with an output of 6.8ms, accepts digital servos including the BLS series and most peripheral equipment such as brushless ESCs

Specs:
Dimensions: 26x39x10mm (1x1.5x0.4")
Weight: 0.28oz (8g)
Operating Voltage: 4.8 to 7.4V
Number of Ports: 4
PWM Output: 3
SBUS Ports: 0
SBUS2 Ports: 0
FASST: No
Telemetry: no
S-FHSS: Yes
High Speed: Yes
High Voltage: Yes
Connector: J (STND)
Range: Full Range
