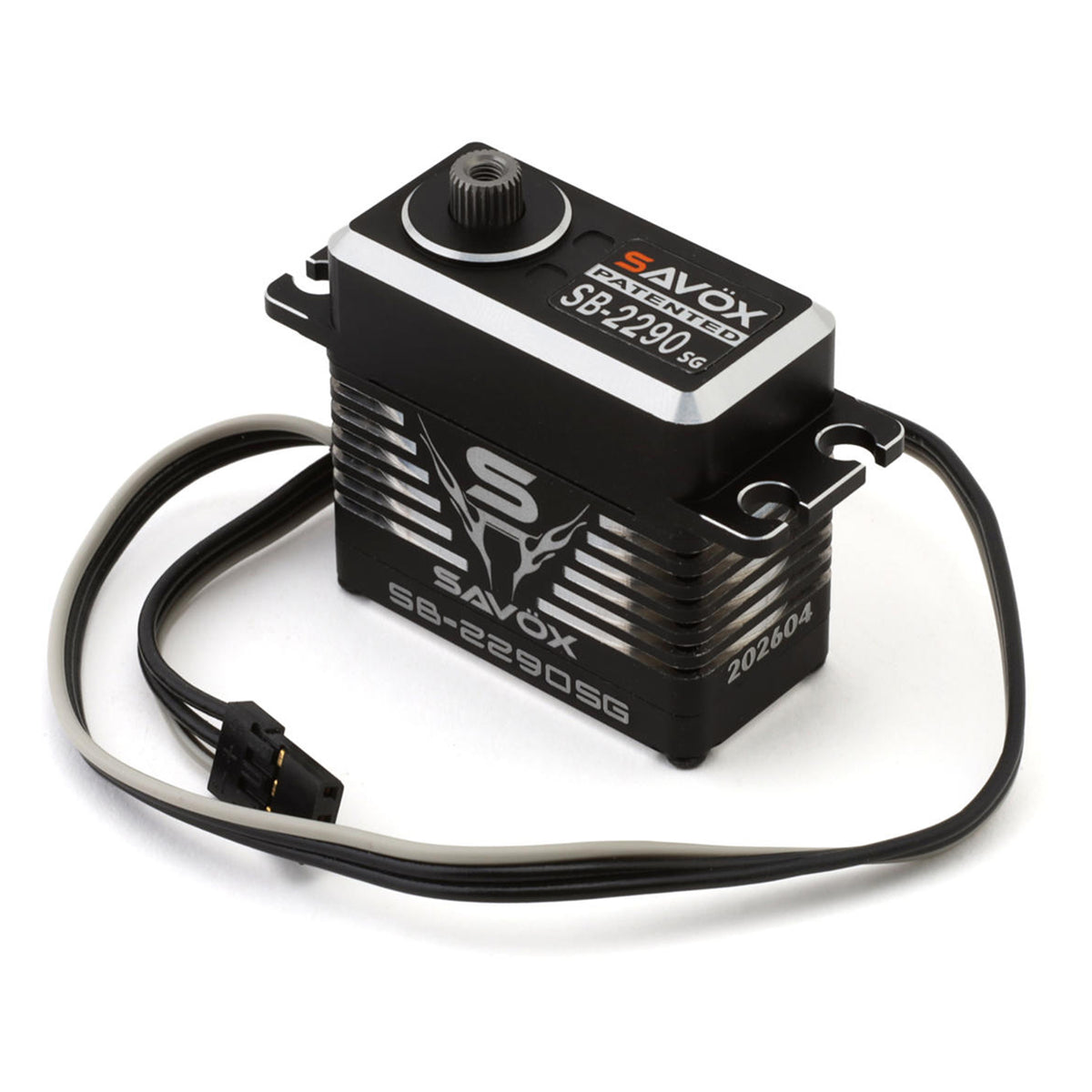

Savox Monster Torque Brushless Servo, Black Edition, 0.11sec / 972.1oz @ 8.4v

Savox SB-2290SG Aluminum Black Edition "Monster Torque" Brushless Steel Gear Servo

When extreme steering power and reliable performance are essential, the Savox SB-2290SG Black Edition Monster Torque Servo delivers. Designed for demanding 1/10 and 1/8 RC applications, this high-output digital brushless servo combines massive torque, fast response, and durable construction in a premium Black Edition package.

The SB-2290SG uses Savox's advanced brushless motor system to provide exceptional power and efficient torque delivery. At 8.4V, it produces an impressive 972.1oz-in (70kg-cm) of dynamic torque, giving high-performance builds the steering authority needed for demanding conditions.

High-Power Construction

A full aluminum case provides increased rigidity while helping manage heat during extended high-load operation. The rigid housing helps maintain structural stability when the servo is subjected to heavy steering loads and impacts.

Inside, a hardened steel gear train is designed for long-term durability and dependable operation. Three precision ball bearings support the output shaft, helping provide smooth movement, reduce friction, and maintain precise steering feel.

Brushless Digital Performance

The brushless motor delivers smooth, powerful operation throughout the servo's range. Combined with Savox's upgraded controller technology, the system is engineered to increase performance by up to 35% while maintaining responsive and precise control.

With operating speeds as quick as 0.11 sec/60° at 8.4V, the SB-2290SG provides rapid steering response without compromising the massive torque required for heavy-duty applications.

Features:

• Full Aluminum Case
• 3 Precision Ball Bearings.
• Unique steel gears
• Torque @ 6v - 45.0kg-cm/624.9oz-in
• Speed @ 6v - 0.16 sec/60 deg

Specifications:

• Torque @ 7.4v - 55.0kg-cm/763.8oz-in
• Speed @ 7.4v - 0.13 sec/60 deg
• Torque @ 8.4v - 70.0kg-cm/972.1oz-in
• Speed @ 8.4v - 0.11 sec/60 deg
• Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
• Weight: 81g
